Manufacturing Customized C19160 Leaded Nickel Copper Tube Pipe For

Name: Manufacturing Customized C19160 Leaded Nickel Copper Tube Pipe For
Brand: TOBO
Price: 1 USD

Quality Manufacturing Customized C19160 Leaded Nickel Copper Tube Pipe For for sale

Brand Name : TOBO

Certification : SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED

Place of Origin : CHINA

MOQ : 10PCS

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50,000 pcs/month

Delivery Time : 15 days

Packaging Details : Wooden box or wooden pallet

Grade : C19160

Application : Air Condition Or Refrigerator

Type : Capillary Tube

Alloy or not : Non-alloy

Wall thickness : 0.2mm~120mm

Cu (min) : 90%

Length : 1-12m

Outside diameter : 3mm-400mm

Outer diameter : 6MM-419.1MM

Thickness : 0.1mm~300mm

Surface : polished

Contact Now

Manufacturing customized C19160 Leaded Nickel Copper tube pipe for electrical

Copper	97.8%
Ni	0.80-1.2%
Pb	0.80-1.2%
Density at 68°F	0.321 Lbs./In.3
Specific Gravity	8.90
Melting Point (Liquidus)	1082°C (1980°F)
Coefficient of Thermal Expansion per °F	9.8 x 10-6 (77-212°F)
Electrical Conductivity at 68°F (volumetric)	50% IACS Min.(aged and drawn)
Modulus of Elasticity - Tension	18,000 ksi
Thermal Conductivity Btu/ft.2/ft./hr./°F at 68°F	146

Application

Electrical Industry: Electrical Contacts, Connector Pins, SocketsIndustrial: Electronic Equipment, Cylindrical Contacts for coaxial and circular connector

Detailed Images

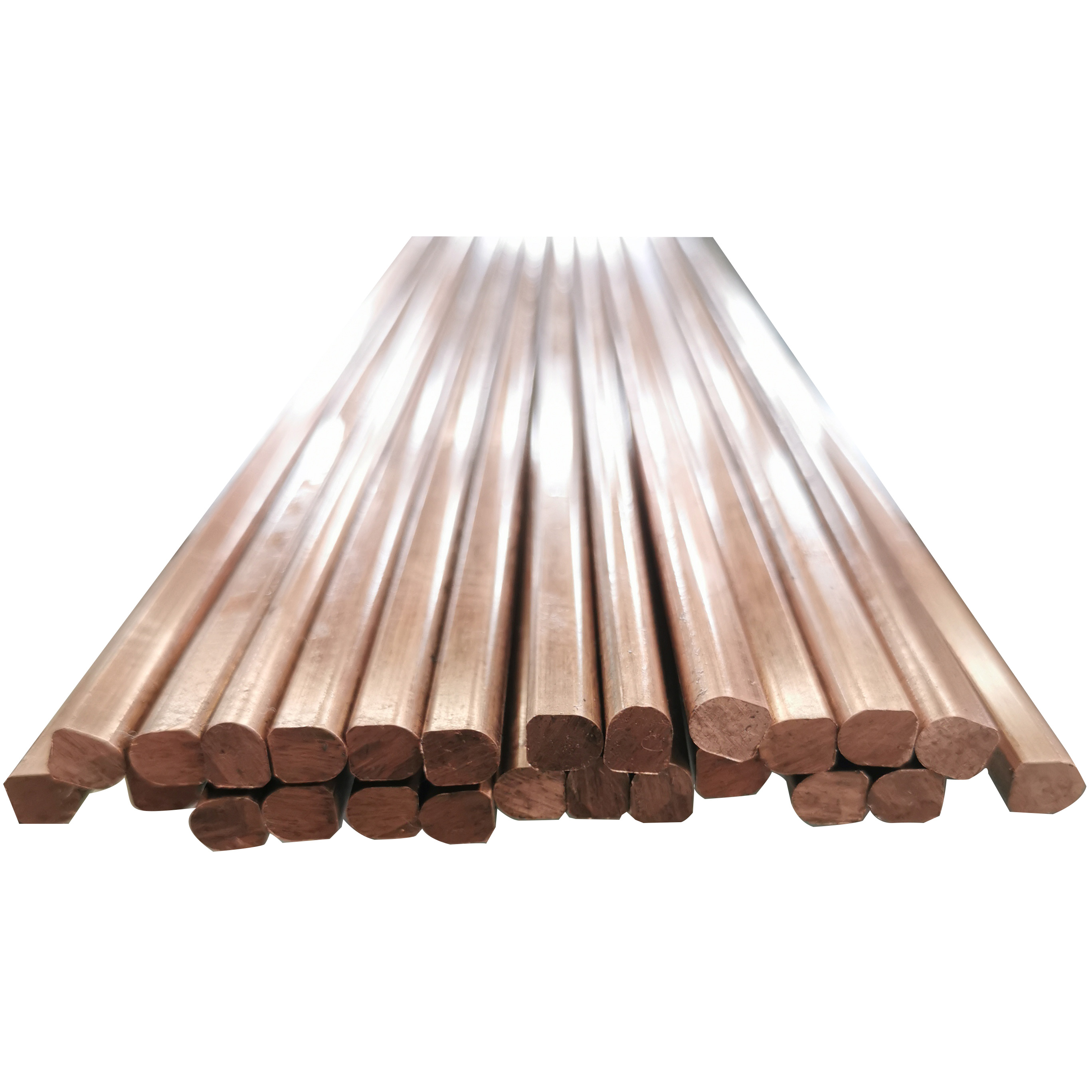

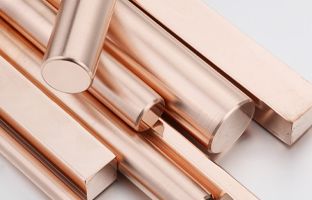

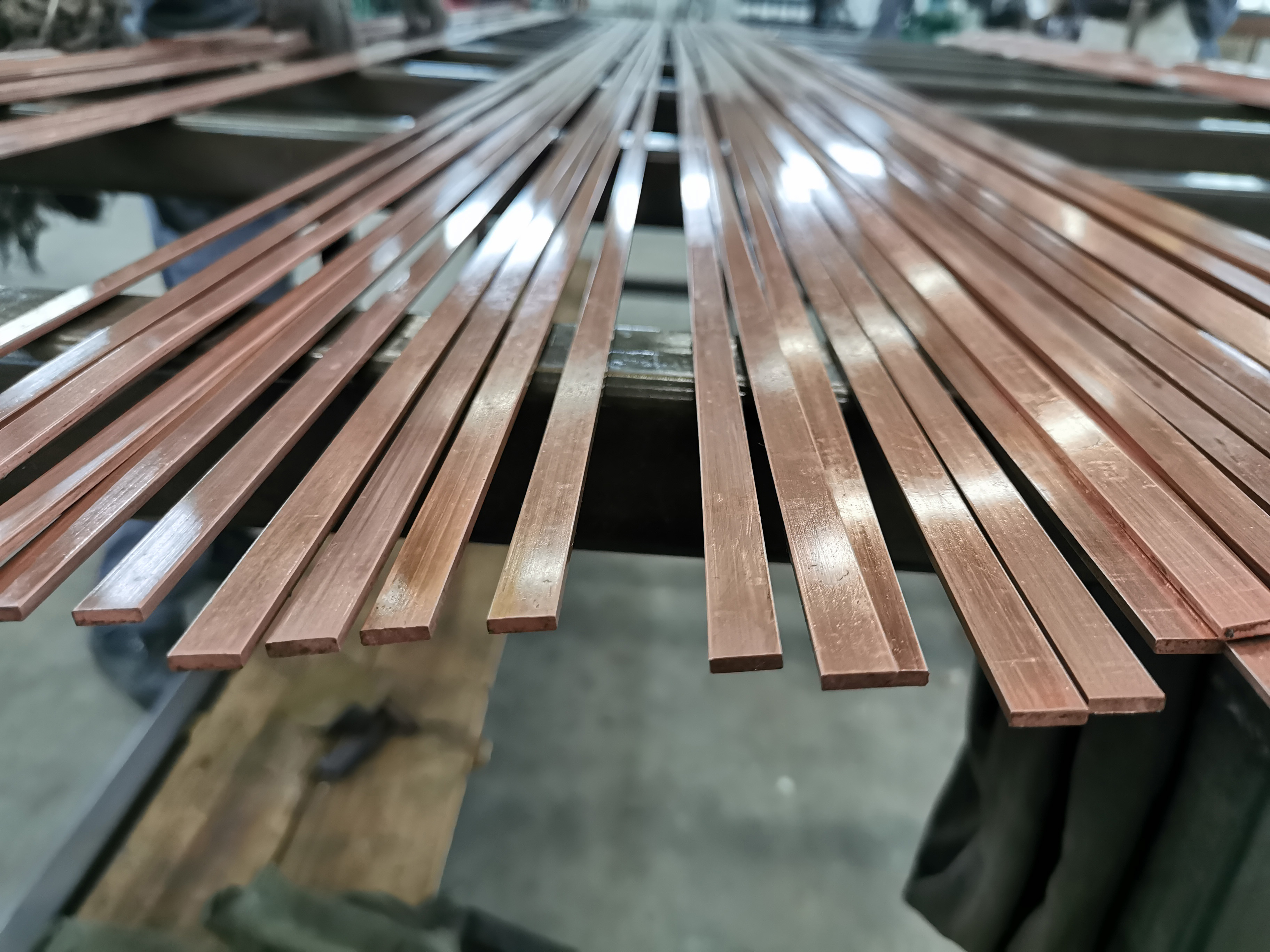

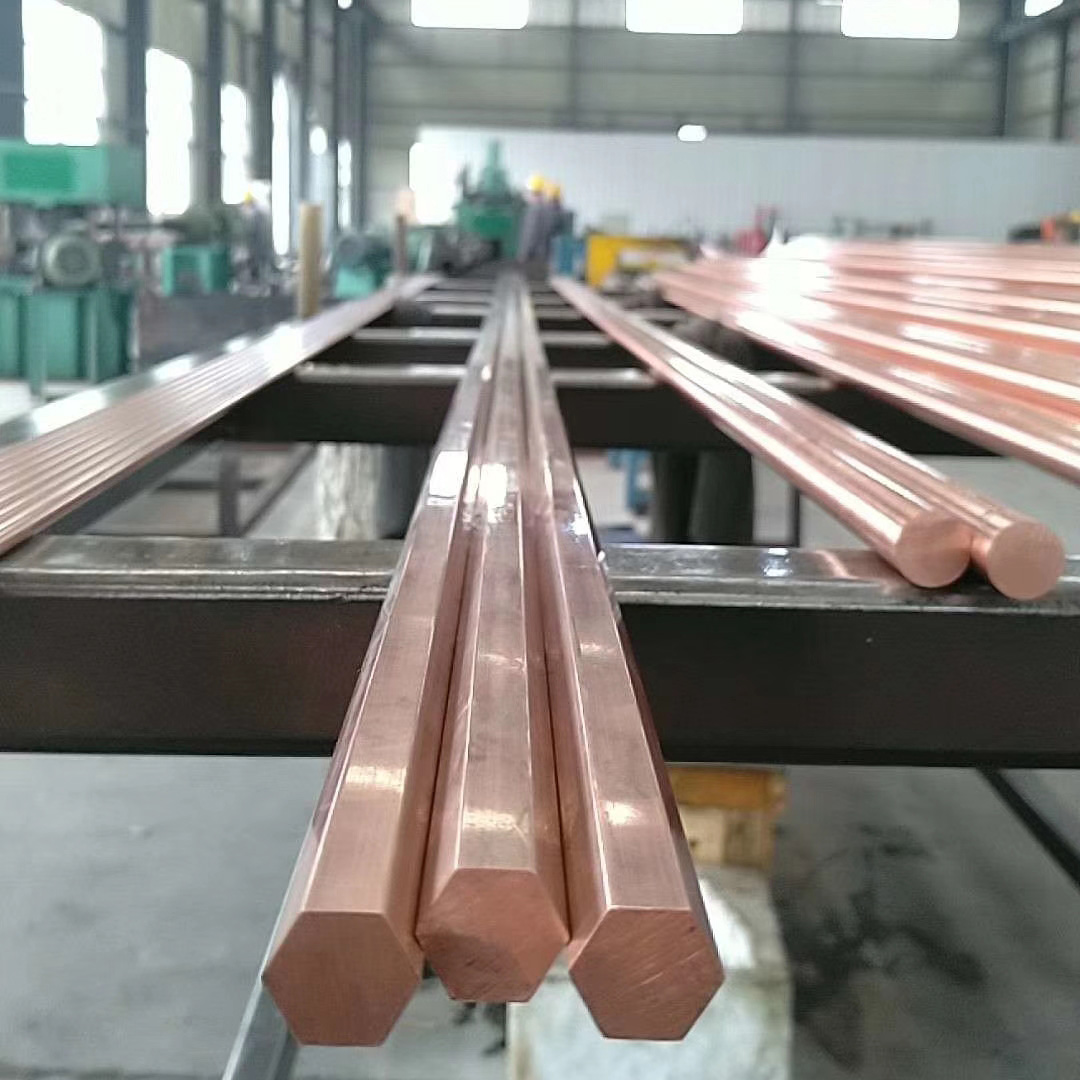

Round rod, Flat Bars, Plates, and other customized are avalible!

Size Information

Shape	Condition	Size
Straight Round Rod/ Wires	hard/half hard	Φ2-15mm
Straight Round Rod	hard/half hard	Φ3-90mm
Flat Bars/ Plates/ Sheets	hard/half hard	a2-8*b2-150mm

Product details

Essential details

Type:: Straight Copper Pipe

Application:: electrical

Specification:: OD:2mm~914mm

Grade:: Leaded Nickel Copper tube

Length:: 1-12m, 3m-30m

Cu (Min):: 97.8%

Alloy Or Not:: Is Alloy

Ultimate Strength (≥ MPa):: 85

Elongation (≥ %):: 75

Wall Thickness:: 0.4mm-3mm

Outside Diameter:: 2mm-914mm

Model Number:: C19160

Place of Origin:: China

Processing Service:: Bending, Decoiling, Welding, Punching, Cutting

ISO:: CuNi1Pb1P

UNS:: C19160

DIN:: 17666

Other shape:: sheet/plate,rod/bar,pipe/tube,wire/cable,tape/strip/foil

Ni:: 0.80-1.20%

Pb:: 0.80-1.20%

P:: 0.15-0.35%

Sn:: 0.05% Max.

Zn:: 0.50% Max

Fe:: 0.05% Max.

Supply Ability

Supply Ability: 1000 Ton/Tons per Month

Packaging & delivery

Packaging Details: Plywood cases

Port: China ports

Picture Example:

Lead time:

Quantity(kilograms)	1 - 1	>1
Lead time (days)	7	To be negotiated

Packing

full wrapped and bundled
free-fumigation wooden case
Shipping by 20ft/40ft container
 Standard sea worthy packing,or as client's requirements

Application

For air conditioning

For cables

Heating device

For water supply system

For medical oxygen system

For ships

As a highly respected high-quality pipe, copper pipe is widely used in the fields of air conditioning and refrigeration, heating and ventilation, medical oxygen, ships, heating, water pipes, etc. And because the recycling of copper is beneficial to environmental protection, copper pipe is also a green building material for sustainable development.

FAQ

1. Are you trading company or manufacturer ?

We are manufacturer ,You can see the certification.

2. How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ?

Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ?

Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.

Packaging&Shipping

Package:Standard export carton packing.

Delivery time:stock-45 days after confirming order,detail delivery date should be decided according to production season and order quantity.
